Luxury architecture is no longer defined only by expensive materials, impressive façades, large windows, premium furniture, or sophisticated lighting. Modern luxury spaces are increasingly judged by the quality of the experience they provide. Temperature, humidity, indoor air quality, acoustic comfort, visual cleanliness, and the reliability of building systems all influence how occupants perceive a high end environment.

Among these factors, ventilation is one of the most important and one of the easiest to overlook. People expect fresh air, controlled humidity, and effective heat removal, but they do not want to constantly hear the mechanical equipment responsible for providing those benefits. A ventilation system that performs well but produces noticeable noise can reduce the sense of comfort and refinement that a luxury building is designed to create.

This is why quiet exhaust fan integration has become an important consideration in modern architectural HVAC design. The objective is not simply to purchase a fan with a low sound rating. A truly quiet ventilation solution requires coordination between the fan, motor, airflow path, ductwork, mounting structure, control system, building materials, and architectural layout.

In luxury residential buildings, boutique hotels, private clubs, premium restaurants, high end retail stores, executive offices, wellness facilities, and sophisticated healthcare environments, the exhaust system often needs to operate in the background without attracting attention. The best result is achieved when occupants experience the benefits of ventilation without consciously noticing the equipment.

For manufacturers such as China Chungfo Fan, this creates an opportunity to approach fan design from both an engineering and architectural perspective. A compact ventilation component can become part of a larger HVAC solution when its acoustic behavior, airflow performance, physical dimensions, control options, and reliability are considered from the beginning of the building design process.

Why Noise Matters In Luxury Architectural Spaces

Noise has a different psychological impact in a luxury environment than it does in an ordinary industrial or utility space. In a factory, warehouse, workshop, or mechanical room, equipment noise may be accepted as part of the environment. In a luxury hotel room or private residence, however, even a relatively small continuous sound can become noticeable.

Luxury architecture often aims to create a feeling of calm. Natural materials, soft lighting, carefully selected textures, concealed equipment, and controlled spatial proportions are used to create an atmosphere in which occupants can relax. A fan that produces a persistent tonal sound can interfere with that atmosphere.

The challenge becomes more significant because ventilation fans may operate for long periods. A short burst of sound may be acceptable, but continuous operation creates a different perception. Human hearing is highly sensitive to repetitive tonal sounds, especially when the surrounding environment is quiet.

For this reason, fan noise should not be considered as an isolated specification. The sound level generated by the fan is only one part of the acoustic result. Air turbulence, motor vibration, bearing behavior, mounting surfaces, duct resonance, grille design, and pressure losses can all influence what occupants ultimately hear.

A fan with an acceptable laboratory noise rating can still become noisy after installation if the duct system is poorly designed. Conversely, a well selected fan combined with suitable ductwork and vibration isolation can provide a much quieter real world result.

This distinction is especially important for architectural HVAC systems because the fan is often connected to a larger network. The complete airflow system determines how hard the fan must work. If the system creates excessive resistance, the fan may need to operate at a higher speed. Higher speed can increase turbulence, vibration, motor noise, and aerodynamic noise.

The first principle of quiet ventilation is therefore simple. Do not design the fan separately from the airflow system.

Quiet Performance Starts With Correct Fan Selection

The most important step in creating a quiet exhaust system is choosing a fan that matches the actual operating conditions. A common mistake is to select a fan based only on maximum airflow.

Maximum airflow is useful for comparing products, but it does not describe how a fan will perform after installation. A fan connected to a restrictive duct system may deliver significantly less airflow than its free air rating suggests. If the required airflow is not achieved, the system may compensate by increasing fan speed or operating time.

A better selection process considers airflow, static pressure, operating voltage, speed, sound level, dimensions, bearing system, motor design, expected operating hours, temperature conditions, and control requirements.

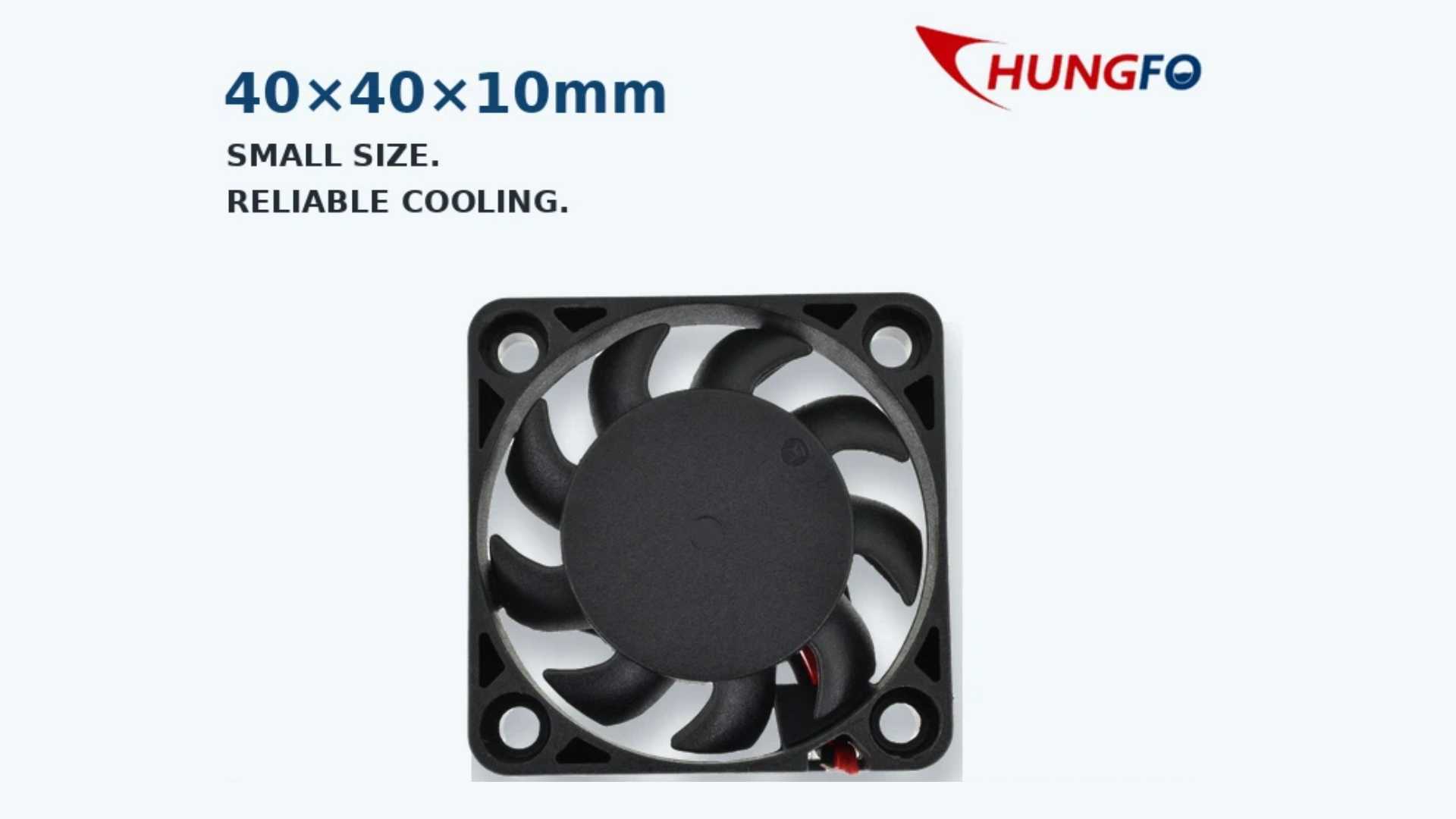

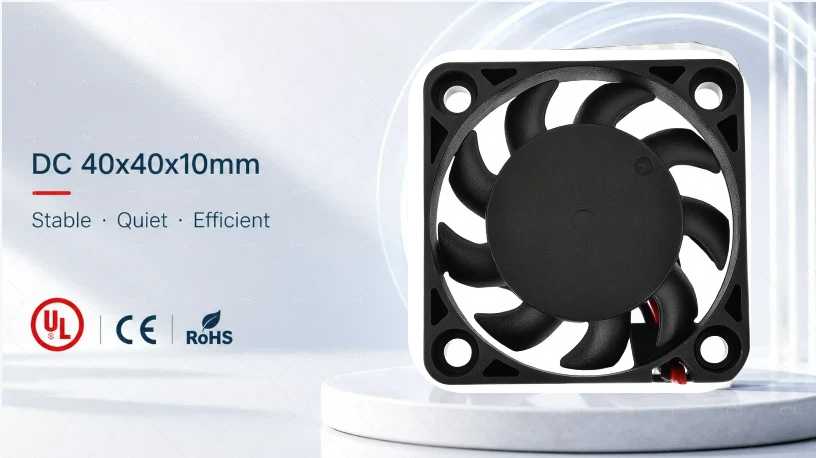

For compact architectural equipment, a DC Axial Fan can be useful when space is limited and the application requires direct airflow movement through a relatively open ventilation path. Axial fan structures can provide a compact solution while maintaining useful airflow performance.

However, not every ventilation application should use an axial configuration. When the system requires higher pressure or has complex airflow routing, a centrifugal structure may be more appropriate. The fan should therefore be selected according to system resistance rather than according to the product category alone.

The relationship between airflow and pressure is particularly important. A fan does not operate at its maximum airflow once it is connected to ductwork. The actual operating point is determined by the intersection of the fan performance curve and the system resistance curve.

In luxury architectural projects, engineers should identify the expected system resistance before finalizing the fan. This includes duct length, elbows, filters, grilles, dampers, silencers, transitions, and other components. Once the actual pressure requirement is known, the fan can be selected to deliver the required airflow without excessive speed.

Why Lower Speed Can Improve Acoustic Comfort

Fan speed is one of the most important variables affecting noise. In many applications, increasing speed can significantly increase aerodynamic noise. A system that uses an unnecessarily high speed fan may therefore create acoustic problems even if the fan itself is technically capable of operating quietly.

A better approach is to choose an appropriate fan size and operating point so that the required airflow can be delivered at a reasonable rotational speed.

This is where compact fans and customized motor control can become valuable. Instead of operating continuously at maximum output, a ventilation system can use variable speed control to match fan performance with actual demand.

For example, a bathroom in a luxury residence may require stronger exhaust during showering but much less airflow afterward. A continuously operating fan can run at a lower speed during normal conditions and increase speed temporarily when humidity rises.

This approach provides several benefits. It can reduce unnecessary noise, reduce energy consumption, improve equipment life, and maintain better control of indoor conditions.

PWM control can also provide more precise speed management in systems that support the required electrical architecture. By adjusting fan speed according to actual ventilation demand, the HVAC system does not need to operate at maximum capacity at all times.

The result is a more intelligent ventilation system that remains almost invisible to occupants.

The Role Of Motor And Bearing Design

The motor is another important source of acoustic performance. A fan does not produce noise only because air moves through the blades. Electrical and mechanical components can contribute to the overall sound profile.

Motor imbalance, bearing friction, rotor movement, structural vibration, and manufacturing tolerances can all influence fan behavior.

A well engineered brushless motor can provide stable operation and precise speed control. Bearing selection also affects long term performance. Sleeve bearings and ball bearings have different characteristics, and the correct choice depends on the installation environment, expected operating time, temperature, orientation, and required service life.

In compact equipment where space is limited, small blower products can also provide useful airflow solutions. A blower fan 5015, for example, belongs to a compact fan format that can be considered for applications where the airflow path requires a more directed approach. Its suitability depends on the required airflow and pressure rather than the physical size alone.

The same principle applies to a 3010 blower fan. Very compact blower structures can be useful when ventilation equipment must fit into narrow architectural spaces or concealed equipment compartments. However, small dimensions do not automatically guarantee quiet operation. The motor, impeller geometry, pressure requirement, mounting structure, and operating speed must all be evaluated together.

For luxury projects, the objective should be stable and predictable operation rather than simply the lowest possible purchase cost.

Reducing Vibration Before It Becomes Noise

Vibration is often overlooked during HVAC design. Engineers may focus on sound pressure levels while paying insufficient attention to how mechanical vibration travels through the building structure.

A fan mounted directly to a rigid metal panel can transfer vibration into the surrounding structure. The panel may then act as a sound radiator. In a quiet room, this vibration can become noticeable even if the fan itself has a relatively low measured noise level.

Proper mounting can therefore make a major difference.

Flexible mounting components, vibration isolation materials, balanced rotating components, accurate assembly, and appropriate structural support can reduce vibration transmission.

The mounting surface should also be considered. A thin metal panel may amplify vibration differently from a thick structural panel. The surrounding enclosure can create resonant frequencies that make certain fan operating speeds more noticeable.

This is why acoustic engineering should begin at the mechanical interface rather than being added at the end of the project.

Architectural Integration And Hidden Ventilation

One of the defining characteristics of luxury architecture is visual cleanliness. Designers often prefer concealed equipment, integrated grilles, minimal openings, and uninterrupted surfaces.

A ventilation system must therefore fit into the architecture rather than becoming a visible mechanical object.

Fans can be positioned inside ceiling voids, service cavities, equipment compartments, bathroom ceiling systems, kitchen ventilation structures, furniture systems, or dedicated mechanical zones.

The challenge is to maintain sufficient airflow while preventing the fan from being obstructed.

A concealed fan still requires sufficient intake and discharge area. If the opening is too small, airflow resistance increases. If the grille is poorly designed, turbulence and noise may increase.

The ideal architectural solution balances three requirements. The fan should remain visually discreet, the airflow path should remain efficient, and maintenance access should remain practical.

This is particularly important in luxury residences where architectural finishes can be expensive and difficult to remove. A ventilation component that requires extensive ceiling demolition for routine maintenance can create a poor long term ownership experience.

Designing Maintenance Into The Architecture

A quiet exhaust fan is only successful if it remains quiet throughout its service life.

Dust accumulation, bearing wear, blade contamination, loose mounting components, and blocked airflow paths can gradually change fan performance. A system that was almost silent during commissioning may become more noticeable after years of operation.

Maintenance access should therefore be considered during the design stage.

Service panels can be hidden within architectural details. Removable grilles can provide access to filters and fan components. Modular fan assemblies can make replacement easier.

For high end buildings, maintenance should not require compromising the appearance of the interior. The service solution should be planned with the same attention given to lighting, plumbing, and electrical equipment.

This is one reason why fan manufacturers should communicate closely with HVAC engineers and architectural teams. Product dimensions, connector positions, mounting holes, airflow direction, replacement procedures, and service clearances can all influence the final building design.

Quiet Exhaust Fans In Luxury Bathrooms

Bathrooms are one of the clearest examples of why quiet exhaust ventilation matters.

A luxury bathroom may include stone surfaces, glass, wood, decorative metal, large mirrors, and other hard surfaces. These materials can reflect sound and create a more acoustically sensitive environment.

At the same time, bathrooms require effective humidity removal. Steam generated by showers and hot water can increase humidity rapidly. Without adequate exhaust, moisture may remain inside the room and contribute to condensation, odors, and long term material problems.

The ventilation system therefore has to remove humid air without becoming the dominant sound source.

A variable speed exhaust fan can provide a practical solution. During normal operation, the fan can run at a lower speed. When humidity increases, the control system can temporarily increase airflow.

This creates a ventilation pattern that follows actual demand instead of operating continuously at maximum capacity.

For luxury hotels and private residences, this type of control can significantly improve the perceived quality of the bathroom environment.

Luxury Kitchens Require Another Approach

Kitchen ventilation is more demanding because cooking generates heat, moisture, grease, odors, and particles.

A quiet fan cannot simply be selected based on sound level. It must also be capable of handling the required airflow and pressure conditions.

Duct length, bends, filters, dampers, and exhaust outlets can create substantial resistance. If the fan is undersized, airflow may be insufficient. If the fan is oversized and operated at unnecessarily high speed, noise may become excessive.

The design should therefore begin with the required airflow and pressure and then optimize the fan operating point.

In premium kitchens, the fan may also be separated physically from the occupied space. Placing the primary fan in a remote service location can reduce the amount of mechanical noise reaching the kitchen while maintaining effective air extraction.

This approach demonstrates an important architectural principle. Sometimes the quietest fan is not simply a quieter fan. It is a fan placed in a better location.

Quiet Ventilation In Luxury Hotels

Hotels present an even more complex challenge because the same HVAC principles must work across hundreds of rooms.

Guests have different expectations and different sensitivity to sound. A ventilation system that is acceptable to one guest may be noticeable to another.

Hotel rooms also have nighttime operating requirements. Guests may sleep while ventilation continues to operate.

Low speed continuous ventilation can therefore be useful when properly designed. Instead of allowing the fan to cycle between noisy high speed operation and complete shutdown, a controlled low speed mode can maintain background ventilation while minimizing acoustic disturbance.

Bathrooms can use humidity based demand control. Service rooms can use scheduled operation. Public areas can respond to occupancy. Conference rooms can respond to carbon dioxide or air quality sensors.

The overall objective is to make ventilation responsive without making the mechanical system noticeable.

Luxury Offices And Executive Spaces

Executive offices, boardrooms, private meeting rooms, and premium commercial interiors also require acoustic control.

A ventilation fan located near a conference room can interfere with speech intelligibility. A repetitive tonal noise can make conversations more difficult and can affect the perceived quality of meetings.

In these environments, fan selection should be coordinated with the acoustic requirements of the room.

The HVAC designer should consider not only the fan sound level but also duct breakout noise, grille noise, vibration transmission, and background sound.

A well designed system can locate fans away from occupied zones and use properly sized ductwork to distribute air quietly.

This is especially important in executive environments where confidentiality and concentration are important.

Wellness Spaces And Luxury Spas

Spas, wellness centers, meditation rooms, and premium fitness spaces place particularly high demands on acoustic comfort.

These environments are intentionally designed to reduce stress. Water features, natural materials, soft music, and controlled lighting are often used to create a peaceful atmosphere.

Ventilation must support humidity control and air quality without disturbing the experience.

In spa environments, humidity may be significantly higher than in ordinary commercial spaces. Fan materials, motor protection, bearing selection, and electrical protection should therefore be evaluated according to the actual environmental conditions.

Quiet operation remains important, but environmental reliability cannot be sacrificed for acoustic performance.

This is another reason why fan customization can be valuable. The ideal solution may require a specific voltage, airflow range, speed profile, material configuration, protection level, or control method.

The Importance Of Ductwork

Even the best quiet fan can become noisy when connected to poorly designed ductwork.

Small ducts increase air velocity. High velocity can generate turbulence and aerodynamic noise. Sharp elbows can create additional pressure loss. Poorly designed transitions can generate flow separation.

The solution is not necessarily to reduce fan speed alone. The entire airflow path should be optimized.

Duct diameter, length, bend radius, grille area, filter selection, and outlet geometry should be evaluated together.

A larger duct can sometimes allow the same airflow to move at a lower velocity, reducing turbulence. Smooth transitions can reduce pressure loss. Properly designed grilles can improve air distribution.

The fan and ductwork should therefore be treated as one system.

Acoustic Treatment And Fan Placement

Physical distance can also be an effective acoustic design tool.

If the fan can be located away from bedrooms, living rooms, meeting rooms, or relaxation areas, the perceived sound can be reduced.

Remote fan placement is particularly practical when the building includes accessible service zones. The fan can be positioned in a ceiling service cavity or mechanical room while the occupied room receives only the airflow through a properly designed duct system.

Acoustic lining and silencers can also be used where appropriate. However, these components create additional pressure resistance, so they must be included in the fan selection process.

Adding acoustic treatment after the fan has already been selected can cause unexpected airflow problems.

The best sequence is to calculate system resistance, select the fan, evaluate noise, and then optimize the complete system.

Smart Controls Make Quiet Ventilation More Effective

Modern luxury buildings increasingly rely on automation.

Ventilation can be connected to humidity sensors, temperature sensors, occupancy sensors, air quality sensors, timers, building management systems, and smart home platforms.

This creates opportunities for more precise fan operation.

Instead of running continuously at full speed, the system can respond to actual conditions.

A bathroom fan can increase speed when humidity rises. A storage room can operate according to a schedule. A private gym can increase ventilation when occupancy increases. A hotel room can maintain low background ventilation when occupied and adjust operation after the guest leaves.

This type of demand based control can improve both comfort and efficiency.

It also supports the architectural objective of invisibility. The ventilation system becomes something that reacts automatically rather than something occupants have to manage manually.

Energy Efficiency And Quiet Operation

Energy efficiency and acoustic comfort can support each other when the system is designed correctly.

Running a fan faster than necessary consumes additional power and may create unnecessary noise. A correctly sized fan operating near an efficient point can provide the required airflow without excessive energy use.

Variable speed operation can further reduce energy consumption during periods of low demand.

In large luxury buildings, even a small reduction in fan operating power can become meaningful over the lifetime of the building.

The energy strategy should therefore not focus only on the motor efficiency rating. It should consider the entire operating profile.

A fan that is efficient at maximum speed but spends most of its life operating at unnecessary capacity may not provide the best real world solution.

Customization For Architectural Projects

Standard fan products are useful for many applications, but luxury architectural projects often have unusual space and integration requirements.

A fan may need to fit into a specific cavity. The connector may need to face a particular direction. The mounting pattern may need to match an existing bracket. The operating voltage may need to match the building control system.

The fan may also require customized speed control, airflow direction, cable length, material, bearing configuration, or protection features.

This is where an experienced fan manufacturer can contribute beyond simply supplying a catalog product.

China Chungfo Fan can approach the application from the perspective of the actual equipment environment. Instead of treating the fan as an isolated component, the manufacturer can work with project requirements to identify the required airflow, pressure, voltage, dimensions, speed, noise target, and control method.

For architectural HVAC projects, this cooperation can shorten the gap between mechanical engineering requirements and the physical realities of the building.

Testing Before Mass Deployment

Luxury projects often involve significant investment in finishes and equipment. It is therefore advisable to validate ventilation performance before large scale installation.

Prototype testing can evaluate airflow, pressure, noise, vibration, temperature, and control behavior.

Acoustic testing can also identify unexpected tonal noise or structural vibration.

If a fan sounds acceptable in open air but becomes noisy after being installed inside an enclosure, the test environment can reveal the problem before the final architectural finishes are completed.

This is particularly valuable for hotel developments, premium residential towers, private clubs, medical facilities, and other projects where repeated modifications are expensive.

The goal is not simply to verify that the fan works. The goal is to verify that the complete ventilation system works as intended within the architectural environment.

Why Fan Manufacturers Should Understand Architecture

Traditional fan engineering often focuses on airflow, pressure, motor performance, temperature, and reliability.

Those specifications remain essential, but architectural applications require a broader perspective.

A fan may be technically excellent but difficult to integrate. It may provide high airflow but require too much space. It may be quiet in laboratory testing but create vibration after installation. It may be reliable but difficult to access for maintenance.

Architectural HVAC therefore requires collaboration between several disciplines.

Mechanical engineers determine airflow and pressure requirements. Electrical engineers determine power and control requirements. Acoustic engineers evaluate noise and vibration. Architects determine visual integration and spatial constraints. Facility managers consider maintenance and long term operation.

The fan manufacturer sits at the center of these requirements because the fan connects the electrical, mechanical, acoustic, and architectural systems.

A manufacturer capable of understanding these interactions can provide greater value than a supplier that only provides a specification sheet.

The Future Of Quiet Architectural Ventilation

The future of luxury HVAC design will likely move toward smaller, smarter, quieter, and more responsive ventilation systems.

Fans will increasingly operate according to actual environmental demand rather than fixed schedules.

Compact motors and improved control electronics will make variable speed operation more practical.

Sensors will provide more information about humidity, occupancy, air quality, and temperature.

Architects will increasingly expect ventilation components to disappear into the building rather than dominate the ceiling or wall.

At the same time, maintenance and reliability will remain critical. A luxury building cannot depend on a system that performs well only during the first few months of operation.

The most successful solutions will combine quiet mechanical design, efficient airflow, intelligent control, robust materials, reliable motors, and service friendly installation.

How To Specify A Quiet Exhaust Fan For A Luxury Project

The specification process should begin by identifying the actual ventilation requirement.

The design team should determine the required airflow, expected static pressure, operating schedule, available installation space, electrical supply, environmental conditions, acoustic target, control strategy, and maintenance requirements.

The next step is to identify the appropriate fan architecture.

An axial fan may be suitable for direct airflow applications with relatively low system resistance. A blower or centrifugal structure may be more suitable when the system requires higher pressure or directional airflow.

The fan should then be evaluated at its real operating point rather than only at free air conditions.

Noise should be evaluated together with vibration and installation conditions.

The mounting method should be designed before construction.

Ductwork should be sized to avoid unnecessary air velocity and pressure loss.

Control systems should be configured so that the fan operates according to actual demand.

Finally, prototype testing should be performed whenever the project has strict acoustic or architectural requirements.

This process creates a more predictable result and reduces the risk of expensive modifications after construction.

Conclusion

A quiet exhaust fan can be much more than a mechanical component inside a luxury building. When correctly integrated, it becomes part of the invisible infrastructure that supports comfort, air quality, humidity control, energy efficiency, and the overall feeling of refinement.

The key is to stop thinking about quietness as a single fan specification.

True acoustic performance depends on the interaction between the fan, motor, bearing, blade design, airflow, pressure, ductwork, mounting structure, architectural materials, controls, and maintenance strategy.

Luxury architecture demands this level of coordination because the mechanical system must deliver strong performance without becoming visually or acoustically dominant.

For bathrooms, kitchens, hotels, executive offices, spas, private residences, and premium commercial spaces, the right ventilation strategy can provide clean air and humidity control while remaining almost unnoticed.

China Chungfo Fan can support this approach by combining fan engineering with application based customization. From compact ventilation components to larger cooling and exhaust solutions, the right fan should be selected according to the complete system rather than one isolated specification.

The future of luxury HVAC is not simply about moving more air. It is about moving the right amount of air, at the right speed, through the right pathway, with the lowest practical acoustic and energy impact.

When ventilation becomes almost invisible, the architecture can speak for itself.

FAQ

What makes an exhaust fan suitable for luxury architectural HVAC?

A suitable exhaust fan should provide the required airflow and pressure while maintaining low acoustic output, low vibration, reliable operation, compact dimensions, and appropriate control capability. The fan must also be easy to integrate into the architectural and mechanical design.

Is a quiet exhaust fan always better than a high airflow fan?

Not necessarily. A fan must provide sufficient airflow for the application. Selecting an extremely quiet fan that cannot overcome system resistance may result in poor ventilation. The correct approach is to balance airflow, pressure, speed, efficiency, and acoustic performance.

Can a DC Axial Fan be used in architectural ventilation?

Yes, depending on the system design. A DC Axial Fan can be suitable for compact ventilation and cooling applications where the airflow path has relatively manageable resistance. The actual suitability should be determined by the required airflow and static pressure.

Why does a fan become louder after installation?

Installation can introduce additional resistance, turbulence, vibration, and resonance. Ductwork, grilles, mounting panels, and enclosures can all change the acoustic behavior of a fan. This is why system level testing is important.

How can fan speed control reduce noise?

Reducing fan speed during periods of low ventilation demand can reduce aerodynamic noise and mechanical activity. Variable speed control allows the fan to increase output only when higher ventilation is required.

Are small blower fans useful for luxury HVAC equipment?

Small blower fans can be useful where space is limited and a more directed airflow path is required. Products such as a blower fan 5015 or a 3010 blower fan may be considered for compact equipment, but the correct model must be selected according to airflow, pressure, dimensions, and operating conditions.

How should fan vibration be controlled?

Proper balancing, bearing selection, rigid but suitable structural support, vibration isolation, and accurate installation can reduce vibration transmission. The surrounding enclosure should also be evaluated because structural resonance can amplify mechanical vibration.

Can a ventilation fan be completely hidden?

Yes. Fans can be installed inside ceiling cavities, service compartments, equipment cabinets, bathroom ceiling systems, or remote mechanical spaces. However, sufficient airflow clearance and maintenance access must still be provided.

How does ductwork affect exhaust fan noise?

Duct size, air velocity, elbows, transitions, filters, dampers, and grilles affect system resistance and turbulence. Poor duct design can force the fan to operate at higher speed and can generate additional aerodynamic noise.

Why is variable speed ventilation useful in luxury buildings?

Variable speed ventilation allows the system to respond to actual demand. It can provide lower background ventilation during normal conditions and increase airflow when humidity, occupancy, or air quality conditions require additional ventilation.

What should architects consider when integrating a quiet fan?

Architects should consider fan dimensions, installation location, access for maintenance, airflow openings, grille appearance, vibration transmission, duct routing, acoustic requirements, and coordination with ceilings and interior finishes.

Why should fan manufacturers participate early in a project?

Early cooperation allows the fan to be selected according to actual airflow, pressure, space, voltage, control, acoustic, and maintenance requirements. This can reduce the risk of redesign and improve integration between the HVAC system and architectural design.

What role can China Chungfo Fan play in luxury HVAC projects?

China Chungfo Fan can provide fan solutions based on application requirements, including airflow, pressure, voltage, dimensions, speed, noise, control, and installation conditions. For specialized projects, customized fan development can help bridge the gap between standard products and specific architectural HVAC requirements.
